Kontron Launches Compact VPX Computing Board with Advanced Ethernet Capabilities—this headline has generated significant buzz in the world of embedded systems and rugged computing. In June 2025, Kontron, a renowned leader in embedded computing and IoT solutions, unveiled the VX3406, a 3U VPX Ethernet board engineered to deliver robust, high-speed networking in the most demanding environments. This innovation is especially significant for sectors like defense, aerospace, and industrial automation, where reliability, security, and real-time data handling are non-negotiable.
The VX3406 stands out for its unique combination of six independent Gigabit Ethernet ports, advanced Time-Sensitive Networking (TSN) features, and rugged design. But what does this mean for professionals, system integrators, and organizations looking to upgrade their mission-critical systems? In this article, we’ll break down everything you need to know about the VX3406, from its technical capabilities to practical deployment advice—ensuring the information is both accessible for newcomers and valuable for seasoned engineers.
Kontron Launches Compact VPX Computing Board with Advanced Ethernet Capabilities
| Feature/Stat | Details |
|---|---|
| Product Name | Kontron VX3406 3U VPX Ethernet Board |
| Main Innovation | Six independent 1G/2.5G Ethernet ports, each with a dedicated controller |
| PCIe Switch | 8-port, 8-lane PCIe Gen3 switch for high bandwidth and flexibility |
| Time-Sensitive Networking (TSN) | Full support for TSN/IEEE 1588 PTP for precise, deterministic communication |
| Applications | Defense, aerospace, C4ISR, unmanned vehicles, real-time sensor fusion, industrial automation |
| Ruggedization | Conduction-cooled (air-cooled variant available), industrial-grade connectors |
| Security & Isolation | Zero bandwidth contention, superior fault and cybersecurity isolation, secure segmentation |
| Availability | Released June 2025 |
| ITAR-Free | Designed and supported from France, free from ITAR restrictions |
The Kontron VX3406 3U VPX Ethernet board sets a new benchmark for rugged, high-performance networking in demanding environments. Its six independent Ethernet ports, advanced TSN support, and robust design make it ideal for defense, aerospace, industrial automation, and beyond. With features like zero bandwidth contention, superior security, and long-term support, the VX3406 is a future-proof solution for mission-critical applications.

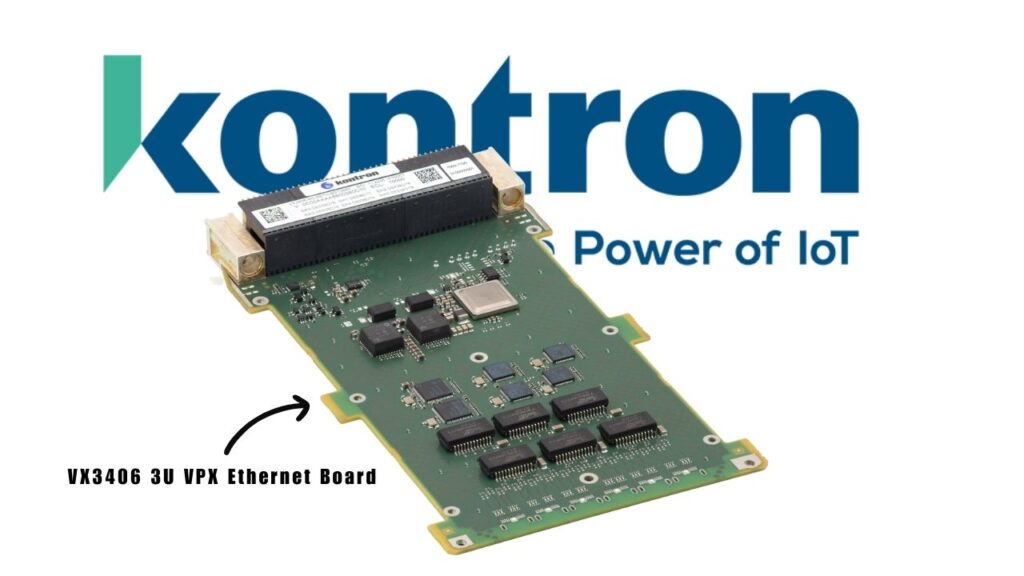

Understanding the Kontron VX3406: A New Standard in Rugged Networking
What is the VX3406?
The Kontron VX3406 is a 3U VPX Ethernet expansion card. In simple terms, it’s a compact, highly durable computer board designed to slot into a standardized VPX chassis. These systems are modular, meaning engineers can mix and match different boards (processors, storage, networking, etc.) to create a custom solution that fits their specific needs. The VX3406 is engineered to provide robust, high-speed Ethernet networking in environments where failure is not an option—think military vehicles, aircraft, and industrial robots.
Why VPX Matters
VPX is an open standard for modular embedded computers, widely used in defense and aerospace. Its popularity is due to its flexibility, support for high-speed data transfer, and ruggedness. VPX systems can withstand extreme temperatures, shock, vibration, and electromagnetic interference—making them ideal for mission-critical applications.
Technical Deep Dive: What Sets the VX3406 Apart?
Six Independent Ethernet Ports
Most embedded networking boards offer a handful of Ethernet ports, often sharing bandwidth through a single controller. The VX3406 is unique: it provides six 1000BASE-T (Gigabit Ethernet) ports, each managed by its own dedicated controller. This architecture offers several critical advantages:
- No Bandwidth Contention: Each port operates at full speed, even under heavy load.
- Superior Fault Isolation: A problem on one port does not affect the others, enhancing system reliability.
- Enhanced Cybersecurity: Each port can be isolated for different security zones or applications, reducing the risk of cross-network attacks.

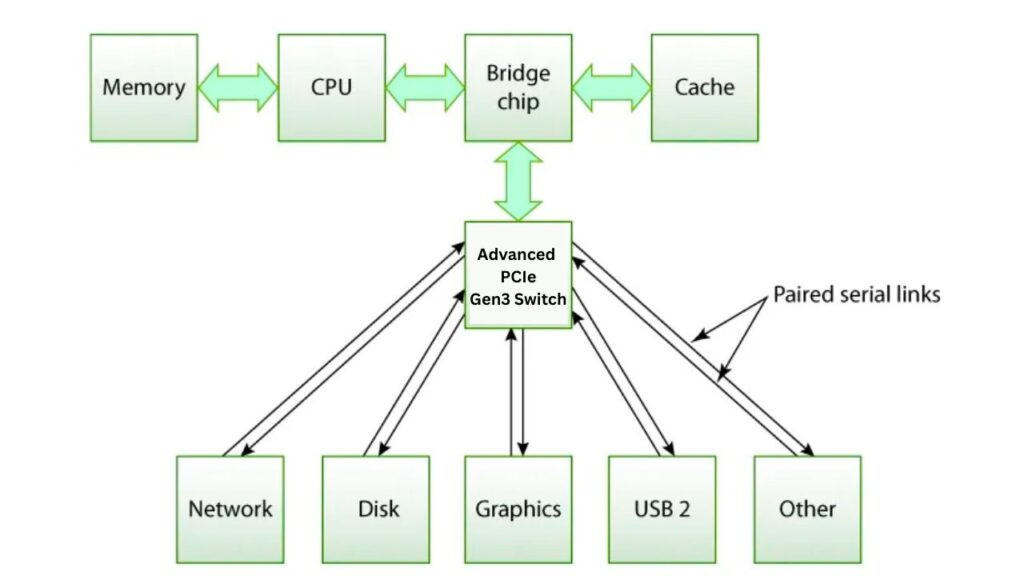

Advanced PCIe Gen3 Switch
At the heart of the VX3406 is an 8-port, 8-lane PCI Express Gen3 switch. This allows the board to support up to four independent 1G/2.5G Ethernet ports with TSN, plus two additional 1G copper ports. The PCIe Gen3 switch enables high bandwidth, flexible network topologies, and efficient data flow between devices.

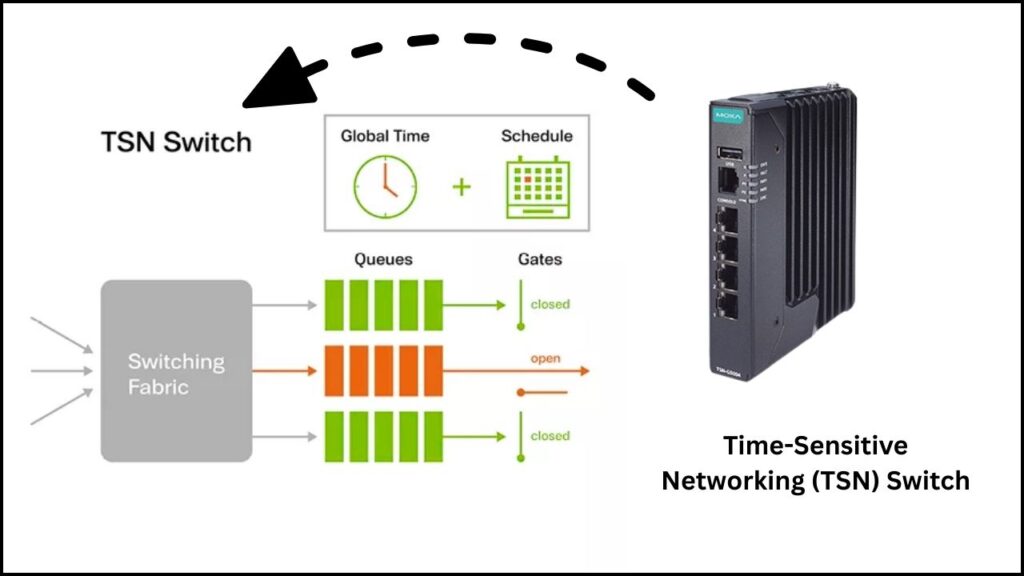

Time-Sensitive Networking (TSN) and IEEE 1588 PTP

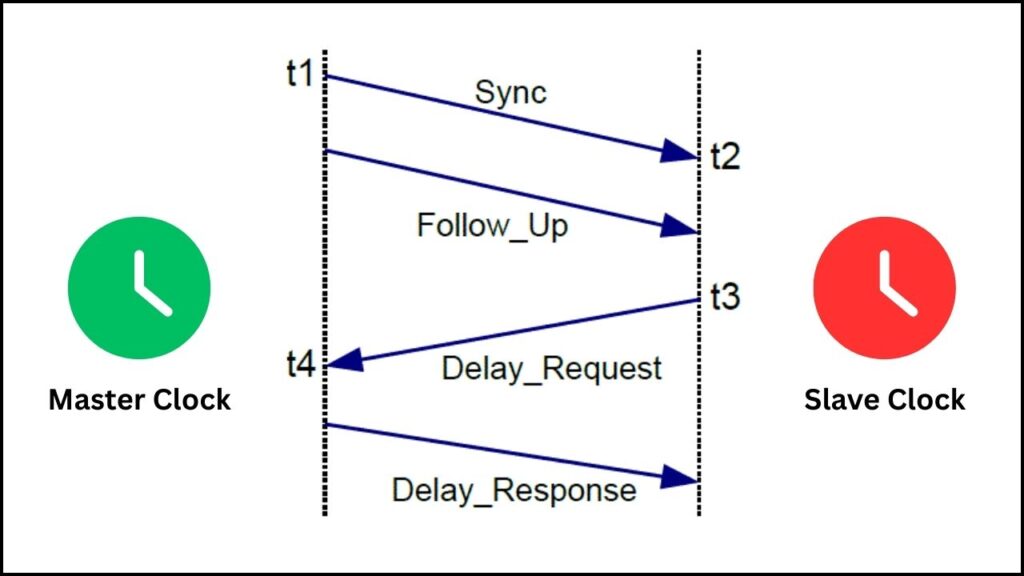

TSN (Time-Sensitive Networking) is a set of standards that make Ethernet predictable and reliable, ensuring data arrives exactly when needed. This is crucial for real-time applications like sensor fusion, mission system coordination, and industrial control. IEEE 1588 Precision Time Protocol (PTP) allows all connected devices to synchronize their clocks with sub-microsecond accuracy, ensuring precise coordination.
Ruggedization and Reliability
The VX3406 is designed for harsh environments:
- Conduction-Cooled: The board uses its metal structure to transfer heat away, allowing it to operate in high-temperature or high-vibration environments where fans or airflow aren’t practical.
- Industrial-Grade Connectors: Harting ix connectors are used for their superior electromagnetic compatibility (EMC) and mechanical durability.
- Long-Term Support: Kontron is known for long-term availability and support, essential for industries with long product life cycles.
ITAR-Free Design
The VX3406 is designed and supported from France, making it free from International Traffic in Arms Regulations (ITAR) restrictions. This is important for organizations that need to avoid complex export controls and compliance issues.
Real-World Applications: How the VX3406 Delivers Value
Aerospace: Real-Time Sensor Fusion
In modern aircraft and drones, multiple sensors (radar, cameras, communications) must send data to a central computer for real-time processing. The VX3406’s six independent ports allow each sensor to connect directly, with guaranteed bandwidth and precise timing. TSN ensures there’s no delay or jitter, enabling the aircraft to make split-second decisions.
Defense: C4ISR Systems
C4ISR (Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance) systems require secure, reliable, and high-speed networking. The VX3406 enables separate, isolated networks for different functions—such as weapons, navigation, and communications—all on one board. This reduces size, weight, and complexity, while enhancing security and reliability.
Industrial Automation
Factories with automated robots and vehicles need precise, real-time communication to ensure safety and efficiency. The VX3406’s TSN support and rugged design make it ideal for controlling robots, conveyor belts, and safety systems in harsh industrial environments.
Unmanned Vehicles and Robotics
Whether it’s an unmanned ground vehicle (UGV) in a military operation or an autonomous robot in a warehouse, reliable networking is essential. The VX3406 can connect multiple sensors, cameras, and control systems, ensuring the vehicle operates safely and efficiently even in challenging conditions.
Step-by-Step Guide: Integrating the VX3406 into Your System
1. Assess Your Network Requirements
- Device Count: How many devices need to connect?
- Real-Time Needs: Do you require deterministic, real-time communication?
- Security: What are your security and isolation requirements?
2. Select the Right Configuration
- Cooling: Choose between conduction-cooled or air-cooled versions based on your environment.
- Port Accessibility: Use the optional Rear Transition Module (RTM) if you need all ports accessible from the rear panel.
3. Install in Your VPX Chassis
- Slot Compatibility: The VX3406 fits into a standard 3U VPX slot.
- Connections: Use industrial-grade Harting ix connectors for reliable, high-speed connections.
4. Configure TSN and PTP
- TSN Setup: Enable Time-Sensitive Networking for precise timing and guaranteed delivery.
- PTP Synchronization: Use IEEE 1588 PTP to synchronize all connected devices.
5. Test and Monitor
- Diagnostics: Run tests to ensure each port is performing independently.
- Monitoring: Continuously monitor network traffic and latency, especially for real-time applications.
Practical Advice for Professionals
Planning for Longevity
When choosing embedded networking solutions, consider long-term availability and support. Kontron’s commitment to long product life cycles means you can rely on the VX3406 for years, reducing the risk of costly redesigns.
Security Best Practices
Leverage the VX3406’s port isolation capabilities to segment your network. For example, separate mission-critical systems from less sensitive applications, and use hardware-based isolation to reduce the risk of cyber threats.
Real-Time Performance Optimization
Take full advantage of TSN and PTP features by ensuring your entire network supports these standards. This will maximize the reliability and predictability of your real-time applications.
Maintenance and Upgrades
Design your system with easy access to the VX3406 for maintenance or upgrades. Modular VPX systems make it simple to swap out boards as technology evolves or requirements change.
BTQ Launches Quantum-Safe Framework to Protect Stablecoins From Future Cyber Threats
Quantum Powered AI and Weather Prediction Project Clear Sky via Quantum Drones Launches
Meta Launches New AGI Lab to Dominate the Future of Artificial Intelligence
FAQs About Kontron Launches Compact VPX Computing Board with Advanced Ethernet Capabilities
Q1: What is the main advantage of six independent Ethernet ports?
Each port operates with its own controller, ensuring full bandwidth, fault isolation, and enhanced security. This is critical for applications where downtime or data loss is unacceptable.
Q2: What is Time-Sensitive Networking (TSN)?
TSN is a technology that makes Ethernet predictable and reliable, ensuring data arrives exactly when needed. It’s essential for real-time control systems in defense, aerospace, and industrial automation.
Q3: Is the VX3406 only for military use?
No. While it’s designed for harsh environments like defense and aerospace, it’s also suitable for industrial automation, transportation, and any mission-critical application needing reliable, high-speed networking.
Q4: What does “conduction-cooled” mean?
Conduction cooling uses the board’s metal structure to transfer heat away, allowing it to operate in high-temperature or high-vibration environments where fans or airflow aren’t practical.
Q5: How long will the VX3406 be available?
Kontron offers long-term supply and support, which is important for industries with long product life cycles.
Q6: What is ITAR-Free and why does it matter?
ITAR-Free means the product is not subject to U.S. International Traffic in Arms Regulations, simplifying global procurement and reducing compliance burdens.
Q7: Can the VX3406 be used in legacy systems?
Yes, the VX3406 is designed to be compatible with standard 3U VPX systems, making it suitable for both new and existing deployments.
