New 3D Acoustic Device: Imagine if you could split sound just like a prism splits light into a rainbow. That’s exactly what scientists have achieved with a groundbreaking invention: a new 3D acoustic device that uses white noise to control sound in multiple directions.
This innovation, called the Acoustic Rainbow Emitter (ARE), is set to transform how we understand and use sound in everything from entertainment to medical imaging. Let’s explore how this device works, why it’s so revolutionary, and what it could mean for the future of acoustics.
New 3D Acoustic Device
| Feature | Details |
|---|---|
| Device Name | Acoustic Rainbow Emitter (ARE) |
| Inventors | Technical University of Denmark & Universidad Politécnica de Madrid |
| How It Works | Splits white noise into different frequencies, steering each in a unique direction |
| Size | About the size of a human ear (can be scaled) |
| Frequency Range | 7.6 kHz to 12.8 kHz (current prototype) |
| Key Applications | Entertainment, telecommunications, medical imaging, acoustic research |
The Acoustic Rainbow Emitter is a leap forward in sound technology. By using white noise and a cleverly designed 3D-printed structure, it splits and steers sound frequencies in multiple directions—passively and efficiently. This innovation could reshape how we experience sound in entertainment, communication, medicine, and beyond.

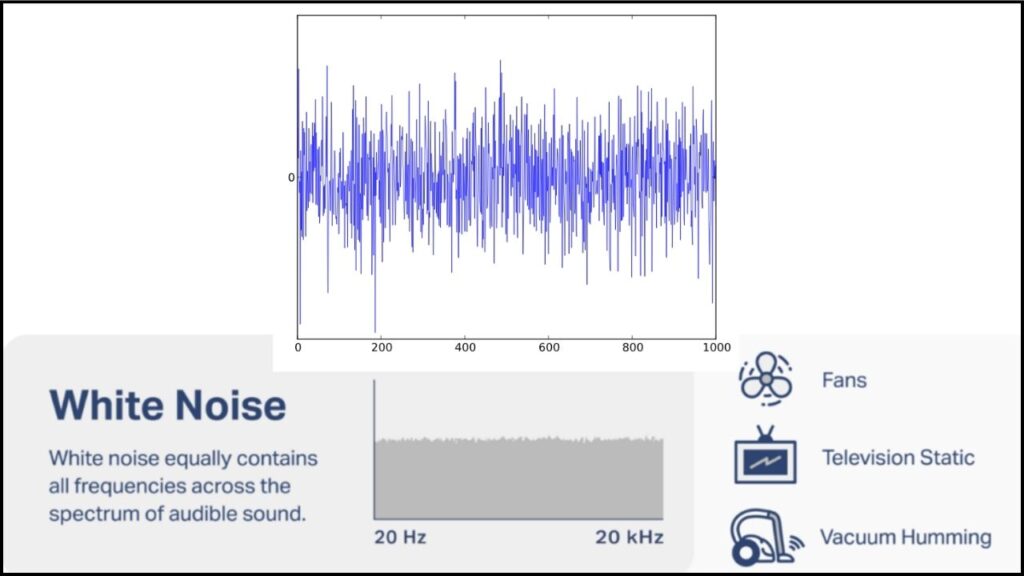

What Is White Noise?
Before diving into the device, let’s clarify what white noise is. White noise is a sound that contains all frequencies humans can hear, played at equal intensity. Think of it like the static from a TV or the sound of a fan. Because it covers every frequency, it’s often used to mask other sounds or help people sleep.
Fun Fact: The highest note on a piano is about 4 kHz, but this device works with sounds up to 13 kHz—well above what most musical instruments can produce!
How Does the Acoustic Rainbow Emitter Work?
The Science Behind the Device

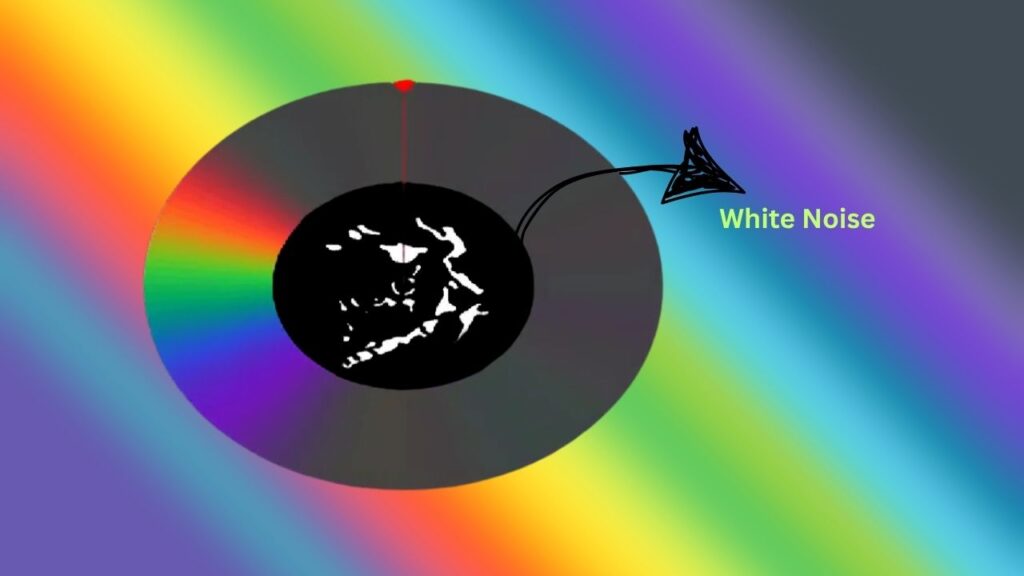

The Acoustic Rainbow Emitter (ARE) is a 3D-printed structure, about the size of a human ear. When white noise is played from a point source at its center, the device scatters the sound so that each frequency (or pitch) is sent in a different direction—just like a prism splits white light into a rainbow of colors.
Nature’s Inspiration
The ARE is inspired by nature. Humans, bats, and dolphins have outer ears (pinnae) with complex shapes that help them figure out where sounds are coming from. Our ears don’t split sound into rainbows, but they do help us sense direction. The ARE takes this idea further, using advanced computer modeling to create shapes that can split sound into its separate frequencies and steer them precisely.
How It’s Made
- Computational Morphogenesis: Scientists use algorithms and computer simulations to design the perfect shape for the device.
- 3D Printing: The design is brought to life using 3D printing, allowing for extremely intricate structures that would be impossible to make by hand.
- Passive Operation: Unlike most sound systems, the ARE doesn’t need electricity or moving parts. It simply uses its shape to control sound.
What Happens Inside?
The ARE is full of oddly shaped pillars and channels. When white noise enters, these structures reflect and interfere with the sound waves, sending each frequency out at a different angle. For example, lower pitches might go to the right, while higher pitches go to the left.
In the lab, the device separated sound frequencies from 7.6 kHz to 12.8 kHz, steering them over a 100-degree range. That’s a huge leap in controlling sound compared to previous devices, which could only manage this in small, closed spaces or with limited frequencies.
Why Is This Device a Big Deal?
Filling the Gap in Acoustic Technology
Until now, most man-made devices that could split or steer sound relied on electronics, active components, or worked only in narrow frequency bands. The ARE is passive (needs no power), broadband (works across a wide range of frequencies), and works in open spaces—just like natural ears, but with even more precision.
Practical Applications
1. Entertainment and Audio Engineering
- Imagine a concert hall where every seat gets the perfect sound, or a home theater where sound effects move around you in 3D.
- The ARE could help design spaces where sound is directed exactly where it’s needed, improving clarity and immersion.
2. Telecommunications
- By splitting and steering sound frequencies, communication systems could become more efficient, reducing interference and improving signal quality.
3. Medical Imaging
- Sound waves are already used in ultrasound. With the ARE’s ability to control sound so precisely, new imaging techniques could be developed for better diagnostics.
4. Acoustic Research
- Scientists can use the ARE to study how sound behaves in different environments, leading to new discoveries in physics and engineering.
Step-by-Step Guide: How the Acoustic Rainbow Emitter Works
Step 1: White Noise Source
A small speaker or sound generator produces white noise at the center of the device.
Step 2: Sound Enters the ARE
The white noise travels into the 3D-printed structure, which is shaped to interact with the sound in very specific ways.
Step 3: Frequency Separation
Inside the device, sound waves bounce off pillars, ridges, and channels. These features are designed so that each frequency interferes constructively (gets louder) in one direction and destructively (gets quieter) in others.
Step 4: Directional Emission
As a result, each frequency exits the device at a different angle. If you walked around the device, you’d hear different pitches depending on where you stood—just like seeing different colors when looking at a rainbow from different angles.
Step 5: Real-World Testing
Researchers tested the device and found that it worked almost exactly as predicted by their computer models, with each frequency steered to its own direction and minimal “side lobes” (unwanted directions).
Real-World Example
Let’s say you’re designing a classroom:
With the ARE, you could direct the teacher’s voice so that every student hears clearly, no matter where they sit. Or, in a noisy factory, you could steer warning sounds only to workers in danger zones, reducing unnecessary noise for everyone else.
Biocarbon from Agro‑Waste Serves as Sulfur Host in Next‑Gen Li‑S Batteries
FAQs About New 3D Acoustic Device
What is white noise, and why is it important?
White noise contains all audible frequencies at equal intensity. It’s important because it can mask other sounds and is used in many technologies, from sleep aids to sound testing.
How is this device different from traditional speakers or sound systems?
Traditional systems use electronics to control sound direction and frequency. The ARE uses only its physical shape—no power, no moving parts—to split and steer sound.
Can the ARE be used for music or only for scientific purposes?
While the current prototype works with high frequencies, the device can be scaled up to work with lower frequencies, making it useful for music, theaters, and more.
Is this technology available for commercial use?
The ARE is still in the research phase, but its creators believe it will soon find real-world applications in various industries.
How big is the device?
The prototype is about the size of a human ear, but it can be made larger or smaller depending on the application.
